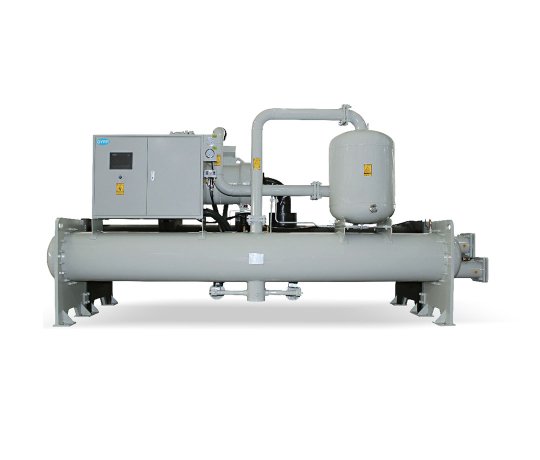

Features: Stable, rapid cooling, ideal for large Middle East cold storage. Operates at -40°C, reduces energy use. Supports oil cracking, pharmaceutical cooling, and industrial 4.0.
Specs: Wide range (-150°C to 35°C). Water-saving design, efficient even in high temps.
Benefits: Reliable cold source, reduces water waste, supports industrial needs.
Model OY-- | D280YLS/T D320YLS/T D360YLS/T D420YLS/T D480YLS/T D560YLS/T D600YLS/T D640YL | ||||||||
Ated Cooling Capacity | ×1000 kcal/h | 384.0 | 419.3 | 466.7 | 551.7 | 634.9 | 759.4 | 858.3 | 862.3 |
kW | 447 | 488 | 543 | 642 | 738 | 883 | 998 | 1003 | |
USRT | 127.0 | 138.6 | 154.3 | 182.4 | 210.0 | 251.1 | 283.8 | 285. | |
lnptpower | kW | 184.8 | 198.8 | 237.2 | 268.8 | 290.2 | 342.2 | 383.2 | 410.0 |
Comp.current | 312.4 | 330.6 | 383.6 | 448.0 | 482.0 | 566.0 | 628.0 | 680.0 | |
Power Supply | 3φ-380V-50Hz | ||||||||
Protection Device | Phase Reversion Protection Phase Lack Protection Overload Current Protection Discharge AirTemperature Protection | ||||||||
Refrigerant | R22 | ||||||||
Jumber Of Refrigeration Circuit | 2 | ||||||||
Capacity Control | 0,25,37.5,50,62.5,75,87.5,100 | ||||||||
Refrigerant charge | 114 | 125 | 139 | 164 | 189 | 226 | 255 | 257 | |
Condenser | Shell-and-Tube Type | ||||||||
Mpa Water Side max Pressure | 1 | ||||||||
Dia.of pipe to Condenser | 5" | 5" | 5" | 5" | 6" | 6" | 8" | 8" | |
Cooling Water Flow m³/h | 108.6 | 118.0 | 134.1 | 156.6 | 176.9 | 210.7 | 237.6 | 243. | |
ondenser Water Pressure drop | 60 | 62 | 64 | 67 | 70 | 71 | 73 | 73 | |
Evaporator | Shell-and-Tube Type | ||||||||
Water Side max Pressure | 1 | ||||||||
Dia.of pipe to Evaporator(inch) | 5" | 5" | 5" | 5" | 6" | 6" | 6" | 6" | |
40%Glycol Flow Capacity | 76.8 | 83.9 | 93.3 | 110.3 | 127.0 | 151.9 | 171.7 | 172.5 | |
vaporator Water pressure drop | 63 | 68 | 70 | 72 | 72 | 72 | 75 | 75 | |
Running noise dB(A) | 77.0 | 77.5 | 79.0 | 79.0 | 80.0 | 81.0 | 83.0 | 83.0 | |
Total Weight | 3130 | 3230 | 3310 | 3360 | 3460 | 3670 | 3770 | 3770 | |
Operating weight kg | 4100 | 4210 | 4320 | 4420 | 4580 | 4700 | 4820 | ||
