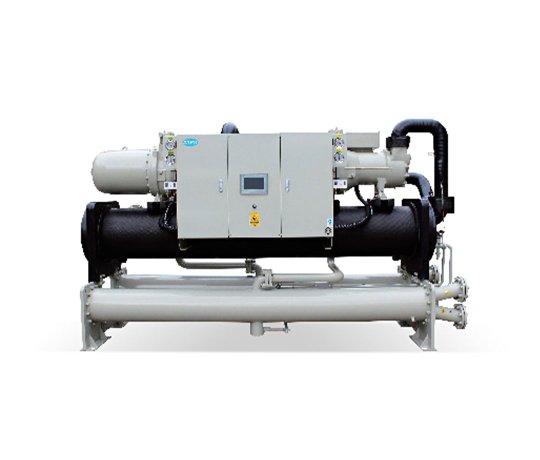

Features: Fast, efficient cooling, ultra-quiet (≤45dB), IoT diagnostics, solar-compatible. Ideal for Middle Eastern offices, hotels.
Specs: Cooling 75-800RT, COP up to 7.0. Chilled water: 4-16°C.
Benefits: Reduces energy use, meets high-end comfort and tech demands.
IMIO del | DNJ²/OIVIQ⁵ | DNJ52OIVIQ5 | DNJ700IVIQ5 | DNjo⁵OIMQ⁵ | DNJI400IVIQ3/I | DNJ15OOIVIQ3/I | ||
Refrigeration capacity | kW | 266 | 315 | 701 | 855 | 1405 | 1580 | |
USRT | 75.6 | 89.6 | 199.3 | 241.7 | 399.5 | 449.3 | ||
kcal/h | 232,146 | 270,837 | 602,720 | 735,129 | 1,203,720 | 1,358,484 | ||
Power consumption | kW | 42.9 | 51.2 | 107.5 | 130.3 | 206.0 | 231.3 | |
COP | kW/kW | 6.18 | 6.15 | 6.52 | 6.56 | 6.82 | 6.83 | |
IPLV | kW/kW | 8.23 | 8.18 | 8.56 | 8.52 | 9.15 | 9.12 | |
Chilled water flow | m³/h | 46 | 54.2 | 120.6 | 147.1 | 241.7 | 271.8 | |
L/m | 164 | 195 | 434 | 529 | 870 | 978 | ||
Cooling water flow | m³/h | 57.0 | 67.7 | 150.7 | 183.8 | 302.1 | 339.7 | |
L/m | 205 | 244 | 543 | 662 | 1087 | 1223 | ||
Chilled water running resistance | kPa | 79 | 61 | 54 | 45 | 77 | 76 | |
Running resistance of cooling water | kPa | 82 | 65 | 64 | 54 | 86 | 82 | |
Compressor | Quantity | 1 | 1 | 1 | 1 | 2 | 2 | |
Evaporator | spicies | Shell and tube falling film type | ||||||
Quantity | pcs | 1 | ||||||
Condenser | spicies | Shell and tube type | ||||||
Quantity | pcs | 1 | ||||||
Refrigerant | Refrigerant name | R134a | ||||||
Number of cycles | 1 | 2 | ||||||
Flow control mode | Electronic expansion valve | |||||||
Filing amount | kg | 102 | 125 | 300 | 326 | 520 | 536 | |
Eletrical control | Siemens PLC,Chinese LCD touch screen | |||||||
Load control | % | 25%-100%Stepless energy control | ||||||
Security protection | Main circuit fuse,over current protectian,power reverse phase proleclion,high and lowvoltage pratection,over current profection,compressor overheat protection,abnormal water temperature proteclion,abnormal sensor protection,excessive exhaust temperalure protection,anti-freeze protection,frozen water pressure difference protection | |||||||
Thermal insulation material | NBR\PVC Foam plastic | |||||||
Nozzle size | Evaporator in/ out | DN125 | DN150 | |||||
Condenser in/ out | DN125 | DN150 | ||||||
overall dimension | L | mm | 2250 | 3400 | 4170 | |||
W | mm | 1265 | 1280 | 2140 | ||||
H | 18 | 1770 | 2250 | 2310 | ||||
Unit weight | kg | 2100 | 2250 | 3500 | 2800 | 5800 | 6200 | |
Whether you need air-cooled chillers, heat pump units, or custom HVAC systems, we’re ready to deliver high-quality products and exceptional service.
