Combined Air Conditioner

PRODUCT DESCRIPTION:

Used in workshops, medical facilities, operating rooms, and other spaces, it efficiently removes bacteria and dust, delivering a clean air environment with a bacterial filtration rate up to 100-grade.
Specs: Airflow range 2000-160,000 m³/h, cooling/heating capacity customized, air leakage rate ≤3%.

Inquire now

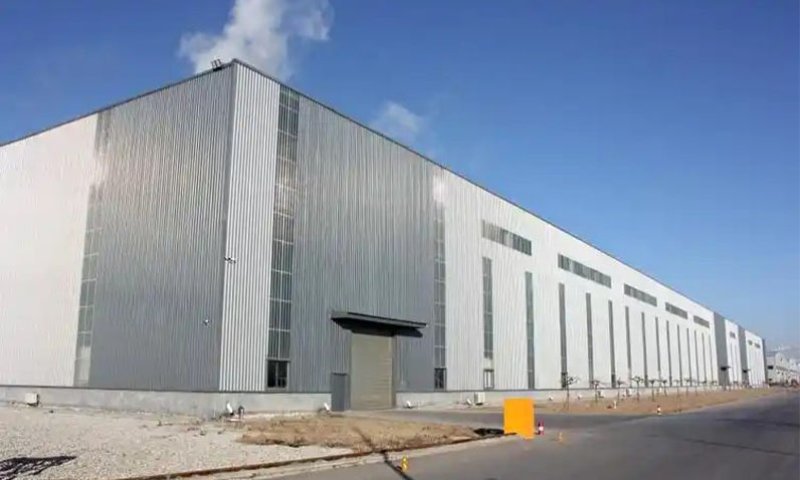

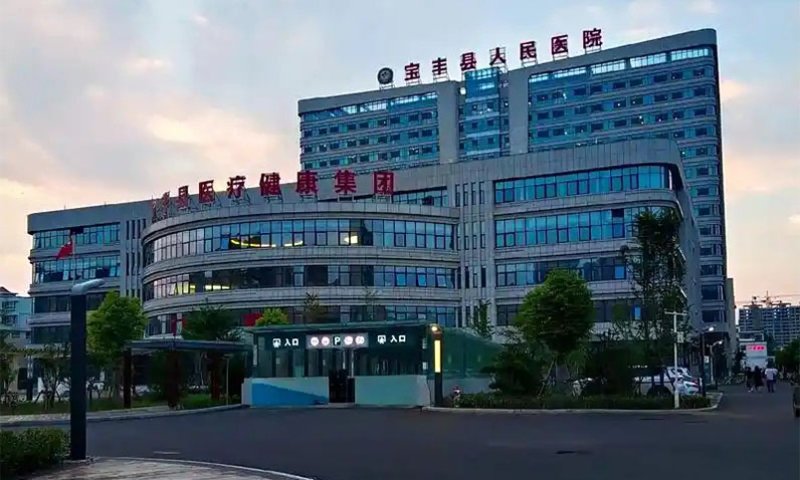

Application Cases

Application Cases

Application Cases

Application Cases

Application Cases

Technical Parameter

Model	Air volume	Cooling capacity (4 rows)	Cooling capacity (6 rows)	Heating capacity	Humidification capacity	External residual pressure	Motor power
Model	CMH	kW	kW	kW	kg/h	Pa	kW
OYZK03	3000	18.6	24.2	9	4	500	1.5
OYZK04	4000	25.9	31.5	12	5	500	2.2
OYZK05	5000	32.2	39.2	15	10	500	2.2
OYZK06	6000	37.2	45.5	18	10	500	3
OYZK08	8000	50.5	62.7	24	13	500	4
OYZK10	10000	60.3	78.6	30	13	600	5.5
OYZK12	12000	72.9	94.3	36	15	600	5.5
OYZK15	15000	98.5	119.2	45	15	600	7.5
OYZK18	18000	118.2	143	54	25	600	11
OYZK20	20000	139.4	167.7	60	30	700	11
OYZK23	23000	145.5	185.5	60	30	700	15
OYZK25	25000	169.4	203.5	72	45	700	15
OYZK28	28000	185.4	225.8	72	45	700	15
OYZK30	30000	199.2	239.6	75	45	700	15
OYZK35	35000	235.6	283.3	90	30×2	800	18.5
OYZK40	40000	271.1	325.6	100	30×2	800	22
OYZK45	45000	286.1	372.1	108	30×2	800	30
OYZK50	50000	322.6	419.8	120	30+45	800	30
OYZK55	55000	355.6	448.6	132	30+45	800	30
OYZK60	60000	382.9	467.4	144	45×2	800	37

Model	L	W	H	A	B	C	D	E	F	Chilled water pipes	Chilled water pipes	Condensate pipe
Model	mm	mm	mm	mm	mm	mm	mm	mm	mm	Return air/4R	Return air/6R	Condensate pipe
OYZK03	2700	800	880	310	400	200	210	322	322	DN25	DN25	DN25
OYZK04	2800	1000	880	310	500	200	210	361	361	DN25	DN25	DN25
OYZK05	2800	1150	880	410	500	250	210	361	361	DN25	DN32	DN25
OYZK06	2800	1050	1130	410	500	320	210	361	361	DN25	DN32	DN25
OYZK08	2600	1300	1130	410	800	320	210	404	404	DN32	DN32	DN25
OYZK10	2700	1500	1130	410	800	320	310	453	453	DN32	DN40	DN25
OYZK12	2800	1500	1330	410	1000	400	310	507	507	DN32	DN40	DN25
OYZK15	2950	1800	1330	510	1250	500	310	565	565	DN40	DN40	DN32
OYZK18	3050	2100	1330	510	1400	500	310	638	638	DN40	DN50	DN32
OYZK20	3100	1950	1530	510	1400	500	410	638	638	DN50	DN50	DN32
OYZK23	3200	2200	1530	510	1600	500	410	715	715	DN50	DN50	DN32
OYZK25	3500	2350	1530	610	1500	500	410	715	715	DN50	DN65	DN32
OYZK28	3600	2100	1880	610	1700	630	410	801	801	DN65	DN65	DN32
OYZK30	3700	2250	1950	710	1500	630	410	801	801	DN80	DN80	DN40
OYZK35	3900	2250	2250	710	1400	800	410	898	898	DN80	DN80	DN40
OYZK40	3850	2500	2250	710	2000	800	510	898	898	DN80	DN80	DN40
OYZK45	4850	2500	2570	710	2000	800	510	1007	1007	2×DN65	2×DN65	DN40
OYZK50	4550	2750	2570	810	2000	1000	510	1007	1007	2×DN65	2×DN65	DN40
OYZK55	4750	3000	2570	810	2500	1000	510	1030	1030	2×DN65	2×DN65	DN40
OYZK60	4750	3250	2570	810	2500	1000	510	1030	1030	2×DN80	2×DN80	DN40
