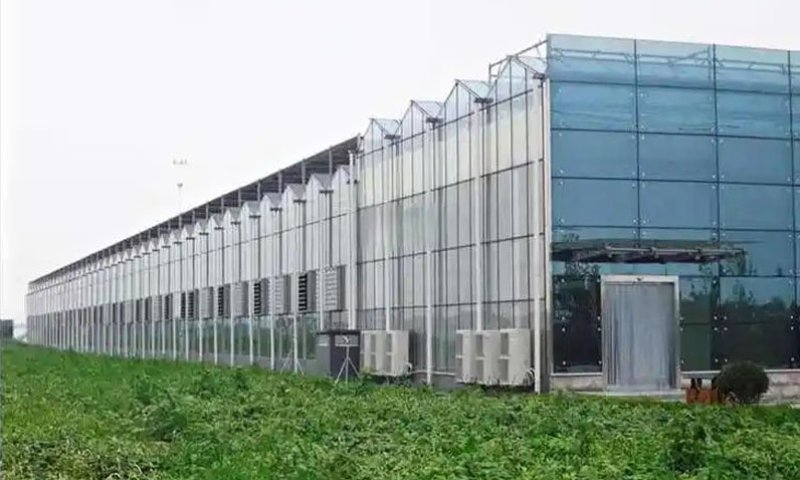

Features: -30°C deep-freeze technology, precise temperature control (±0.5°C), and off-grid operation with solar energy storage. Ideal for Middle Eastern farms, supporting short term cold storage and desert greenhouse flower cultivation, addressing the region’s agricultural cold chain challenges.
Specs: Temperature range -5°C to 35°C, humidity fluctuation ≤5% RH.
Application: Low-temperature, low-humidity environment control (e.g., seed storage).Advanced Cooling System: Rapid cooling with precise temperature control extends agricultural product freshness.
Model | Air volume | Cooling capacity | Heating capacity | Humidification capacity | External residual pressure | Motor power | Connecting pipe |
CMH | kW | kW | kg/h | Pa | kW | Steam pipe/liquid pipe | |
OYZ02-3WF-LH | 2000 | 7.5 | 5 | 3 | 150 | 0.32 | φ16/φ9.52 |
OYZ02-4WF-LH | 2000 | 11.5 | 6 | 4 | 150 | 0.32 | φ19/φ12.7 |
OYZ2.5-5WF-LH | 2500 | 14 | 6 | 4 | 150 | 0.55 | φ19/φ12.7 |
OYZ03-6WF-LH | 3000 | 16.8 | 9 | 4 | 200 | 0.75 | φ19/φ12.7 |
OYZ04-8WF-LH | 4000 | 22.4 | 12 | 5 | 200 | 0.75 | 2×φ19/2×φ12.7 |
OYZ05-10WF-LH | 5000 | 28 | 15 | 8 | 200 | 1.1 | 2×φ19/2×φ12.7 |
OYZ06-12WF-LH | 6000 | 33.6 | 18 | 10 | 250 | 1.5 | 2×φ19/2×φ12.7 |
OYZ7.5-15WF-LH | 7500 | 42 | 24 | 13 | 250 | 1.5 | 2×φ19/2×φ12.7 |
OYZ09-18WF-LH | 9000 | 50.4 | 27 | 13 | 300 | 2.2 | 3×φ19/3×φ12.7 |
OYZ10-20WF-LH | 10000 | 56 | 30 | 15 | 300 | 3 | 2×φ28/2×φ16 |
OYZ12-25WF-LH | 12000 | 67.2 | 36 | 15 | 300 | 3 | 2×φ28/2×φ16 |
OYZ15-30WF-LH | 15000 | 84 | 45 | 20 | 350 | 4 | 3×φ28/3×φ16 |
OYZ18-36WF-LH | 18000 | 100.8 | 54 | 25 | 350 | 5.5 | 3×φ28/3×φ16 |
OYZ20-40WF-LH | 20000 | 112 | 60 | 25 | 350 | 5.5 | 4×φ28/4×φ16 |
OYZ23-50WF-LH | 23000 | 135 | 66 | 30 | 400 | 7.5 | 4×φ28/4×φ16 |
OYZ28-60WF-LH | 28000 | 168 | 84 | 45 | 400 | 4×2 | 5×φ28/5×φ16 |
Whether you need air-cooled chillers, heat pump units, or custom HVAC systems, we’re ready to deliver high-quality products and exceptional service.
