Tent Air Conditioner

Features: Dual air + water cooling, 150kW max cooling, IP67 waterproof/dustproof for extreme weather. Ideal for mobile and quick-install structures.
Specs: Cools 140-400㎡ (15-40HP), drops temp from 35°C to 23°C in 1 hour.
Output: Condensate (via dehumidification).
Benefits: Reliable, low failure rate, cost-effective maintenance, long-term savings.

Inquire now

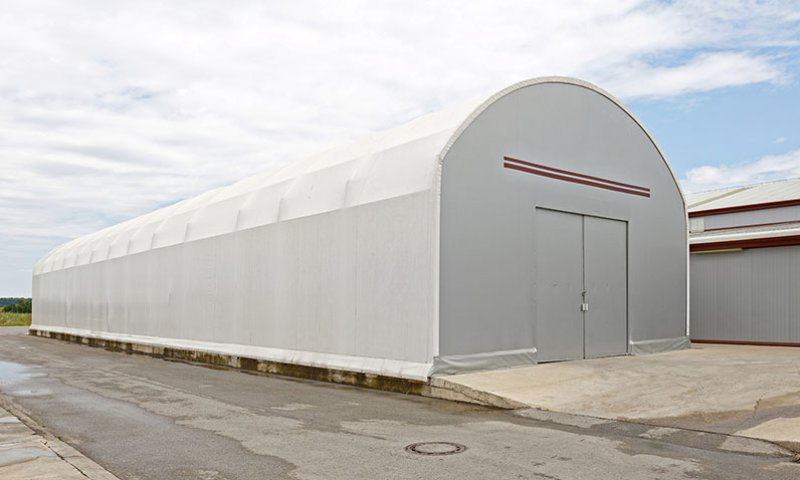

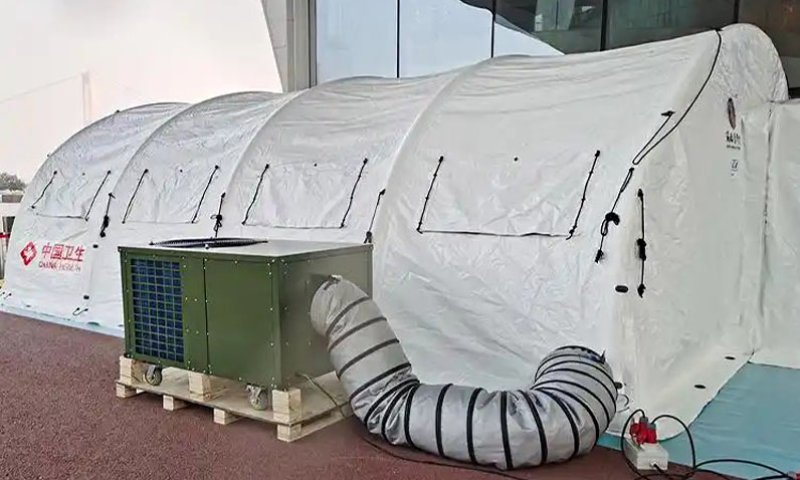

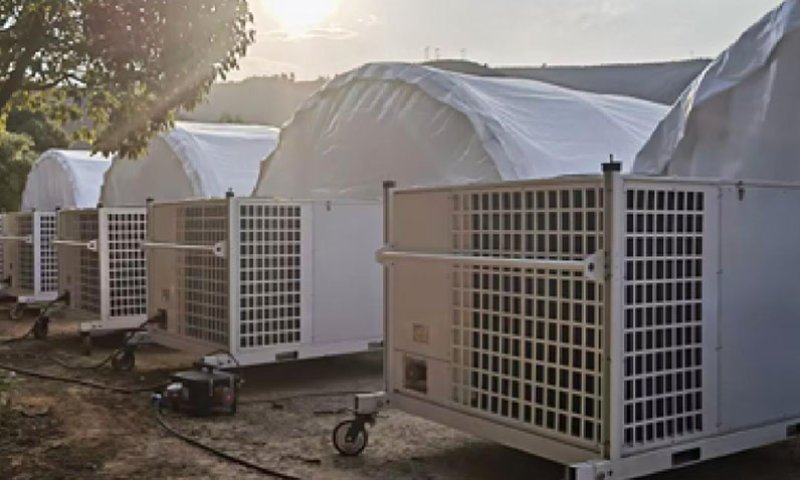

Application Cases

Model OYC - Parameters			K(R)14AWF15	K(R)18AWF15	K(R)21AWF15	K(R)28AWF15	K(R)35AWF15	K(R)56AWF15	K84AWF35/H	K105AWF35/H
H P			5	6	7	10	12	20	30	40
Cooling	Cooling capacity	kW	14	17.5	21	28	34	56	84	105
	Cooling capacity	kcal/h	12040	15050	18060	24080	29240	48160	72240	90300
	Cooling power input	KW	4.36	6.24	7.2	9.72	11.5	17.2	30	37.2
Adjustable capacity		%	0-100	0-100	0-100	0-100	100	100	0,33,66,100	0,33,66,100
Air supply distance		m	≥15				≥15	≥15	≥25	≥25
Compressor	Type		Scroll				Scroll
Compressor	Applied QTY.	tower	1				1	2	3	3
Evaporator	Fin materialType		Hydrophilic louvered aluminum fin				Hydrophilic louvered aluminum fin
Evaporator	Tube materialType		Innergroover tube type				Innergroover tube type
Condenser	Fin materialType		Hydrophilic louvered aluminum fin				Hydrophilic louvered aluminum fin
Condenser	Tube materialType		Innergroover tube type				Innergroover tube type
Condensing fan	Type		High efficiency Centrifuga				High efficiency Centrifuga
	Air discharge type		Top air outlet				Top air outlet
	Numbers	Pcs	1				1
Condensing fan	Type		High efficiency axial				High efficiency axial
	Air discharge type		Top air outlet				Top air outlet
	Rated air flow	m³/h	5200*1	6200*1	7500*1	11000*1	12000*1	20000*1	30000*1	35000*1
Refrigerant	Type		R410a				R410a
Refrigerant	Charge amount	kg	3	3	4	7.5	7.8	7.8×2	7.5x3	7.8x3
Unit dimension	W * D * H	mm	95013801250	95013801250	95013801250	95515801280	95515801280	110027402300	110027402300	110027402375
Unit noise level		dB(A)	60	63	63	65	65	68	71	71
Unit weight		kg	270	356	388	540	590	980	1420	1350
