Air-Cooled Modular Unit

Features: Modular design for flexible cooling/heating, power range 130kW-2000kW. No cooling tower, full-load cooling at 43°C. AI auto-switching for Middle East climate. Stable, low failure rate in high temps.
Specs: Cooling 65-1400kW, heating 70-1400kW, IPLV up to 10.0. Output: Chilled water (7°C) or hot water (45°C).
Benefits: Ideal for large villas/apartments, solves space/maintenance issues of traditional systems.

Inquire now

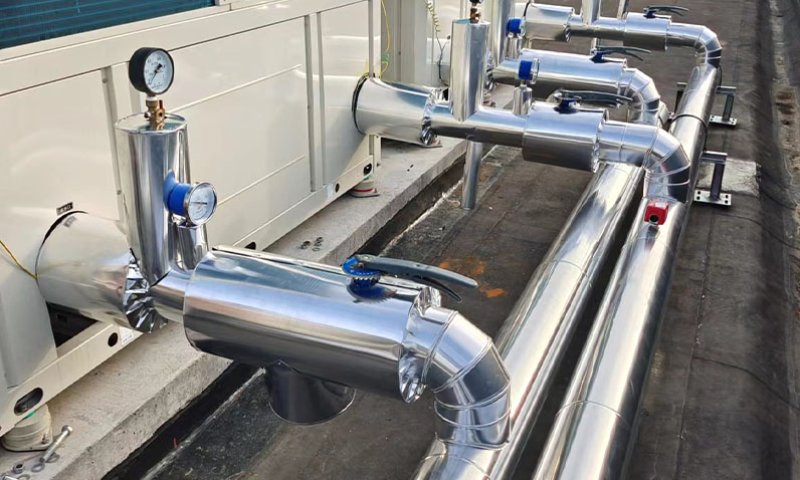

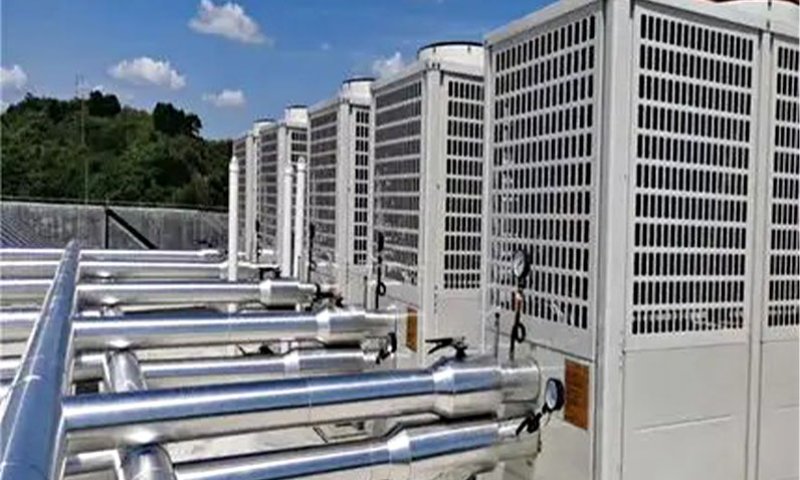

Application Cases

Model	OY-		R(K)7.5AWF	R(K)12AWF	R(K)20AWF/T	R(K)25AWF/T	R(K)30AWF/T	R(K)40AWF/T	R(K)50AWF/T	R(K)65AWF
Rated Cooling	Capacity	×1000 kcal/h	6.4	10.3	17.2	21.7	25.8	34.4	43.0	55.9
	Capacity	kW	7.5	12.0	20.0	25.2	30.0	40.0	50.0	65
	Input power	kW	2.33	3.72	6.21	7.85	9.32	12.38	15.53	20.19
	Rated current	A	4.1	6.6	11	13.9	16.5	21.9	27.4	35.7
Rated Heatting	Capacity	×1000 kcal/h	6.8	11.0	18.7	22.5	28.2	37.0	46.4	61.5
	Capacity	kW	7.9	12.8	21.8	26.2	32.8	43.0	54.0	71.5
	Input power	kW	2.38	3.85	6.56	7.88	9.87	12.92	16.24	21.51
	Rated current	A	4.20	6.80	11.59	13.93	17.43	22.83	28.69	38.00
Power Supply			380V/3N/50Hz
Protection Device			Phase Reversion Protection Phase Lack Protection Overload Current Protection Low&HighPressureProtection LowTemp. Protection WaterFlowProtection
Number Of Refrigeration Circuit			1		2					1
Refrigerant			R410A
Capacity Control			100		0,50,100					100
Condenser			Ripple Aluminum Finsaround Copper Pipe
Power Input of Fan			0.24	0.24	0.65	1.13	1.13	1.85	1.13×2	1.13×2
Evaporator			Shell-and-Tube Type
Water Side max Pressure			1
Dia.of pipe to Evaporator(inch)			1-1/2"(Internal teeth)	1-1/2"(Internal teeth)	1-1/2"(Internal teeth)	1-1/2"(Internal teeth)	2"(Internal teeth)	2"(Internal teeth)	2"(Internal teeth)	2-1/2"(Internal teeth)
Chilled Water Flow m³/h			21	34	57	72	86	115	143	186
Kpa Evaporator Water pressure drop			13	14	17	23	28	30	28	30
Running noise dB(A)			61	61	61	63	63	65	65	65
Total Weight kg			120	150	330	360	405	485	625	645
Unit size	L	mm	1050	1050	1050	1050	1200	1250	2200	2050
	W	mm	800	800	1040	1040	1040	1100	1040	1050
	H	mm	1150	1150	1750	1750	1750	1750	1750	2250
