Features (Core Characteristics)

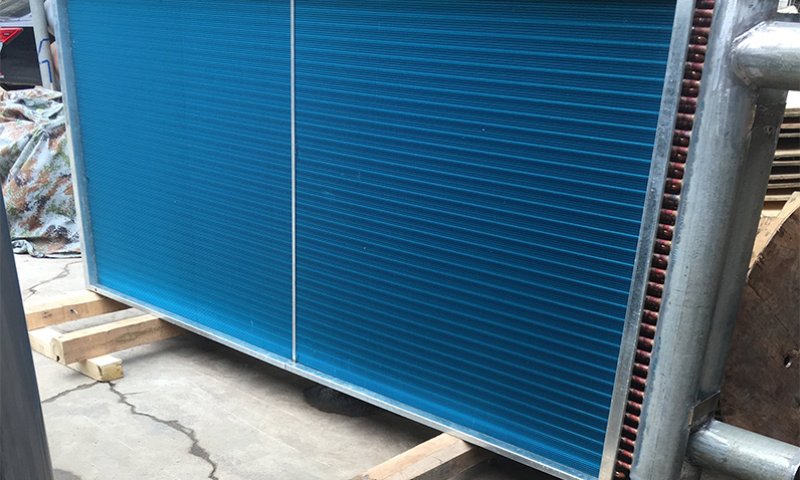

Dry Cooling Coils (DCCs) operate by using chilled water above the indoor dew point temperature to prevent condensation, employ a counterflow design with copper tubes and aluminum fins for enhanced heat exchange, and integrate with systems like MAU and FFU to achieve precise temperature and humidity control.
Specs (Key Parameters)
DCCs utilize chilled water within a controlled temperature range above the dew point, optimize airflow velocity for efficient heat transfer, and are configured based on air volume and enthalpy differences, with anti-corrosion materials ensuring durability in demanding environments.
Benefits (Core Advantages)
DCCs eliminate leakage risks and microbial growth through their condensation-free design, significantly improve energy efficiency by operating at higher water temperatures, and seamlessly integrate with radiant cooling systems to enhance comfort in applications such as cleanrooms and medical facilities
Dry Cooler Fin Spacing 2.1mm | |||||||||||||
Water Capacity 20% Glycol Outlet40℃ | 35℃ Outdoor Temp | inlet 45℃ | DY | kW | 4.89 | 5.9 | 6.83 | 9.39 | 10.99 | 13.33 | 14.32 | 17.01 | 19.8 |
/outlet 40℃ inlet 45℃ | |||||||||||||
4.72 | 5.69 | 6.69 | 8.90 | 10.61 | 13.05 | 13.91 | 16.11 | 19.29 | |||||
Medium | Water Flow | m³/h | 0.85 | 1.03 | 1.20 | 1.63 | 1.91 | 2.30 | 2.50 | 3.00 | 3.50 | ||
Pressure Drop | kPa | 36.00 | 31.00 | 58.00 | 25.00 | 40 | 80 | 50 | 60 | 40 | |||
Air Flow | △ Y | m³/h | 2828 | 2712 | 2492 | 6199 | 5827 | 5225 | 8469 | 8168 | 7601 | ||
Fan Motor | Phase | 1 | 1 | 1 | 3 | 3 | 3 | 3 | 3 | 3 | |||
△ | W | 140 | 140 | 140 | 540 | 540 | 540 | 830 | 830 | 830 | |||
6Y | A | 0.60 | 0.60 | 0.60 | 1.10 | 1.10 | 1.10 | 1.45 | 1.45 | 1.45 | |||
Fan | No.xφ | 1×1x350 | 1x1×350 | 1x1x350 | 1x1x450 | 1x1x450 | 1x1x450 | 1×1x500 | 1×1x500 | 1x1x500 | |||
Sound Pressure Level | △Y | dB(A)10m | 31 | 31 | 31 | 43 | 43 | 43 | 49 | 49 | 49 | ||
Dimension | LWHA | mm | 870 | 870 | 870 | 1020 | 1020 | 1020 | 1220 | 1220 | 1220 | ||
mm | 525 | 525 | 525 | 625 | 625 | 625 | 825 | 825 | 825 | ||||
mm | 797 | 797 | 797 | 820 | 820 | 820 | 870 | 870 | 870 | ||||
mm | 690 | 690 | 690 | 840 | 840 | 840 | 1040 | 1040 | 1040 | ||||
BCD | mm | -- | -- | -- | -- | -= | -= | - | -- | -- | |||
mm | - | -- | -- | 一 | -- | -- | -- | -- | -- | ||||
mm | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | 490 | ||||
Outlet | mm | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" | |||
Outlet φ | mm | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1-1/4" | 1-1/4" | 1-1/4" | |||
Product Weight(empty) | kg | 38 | 42 | 48 | 55 | 60 | 67 | 75 | 82 | 91 | |||
Whether you need air-cooled chillers, heat pump units, or custom HVAC systems, we’re ready to deliver high-quality products and exceptional service.
