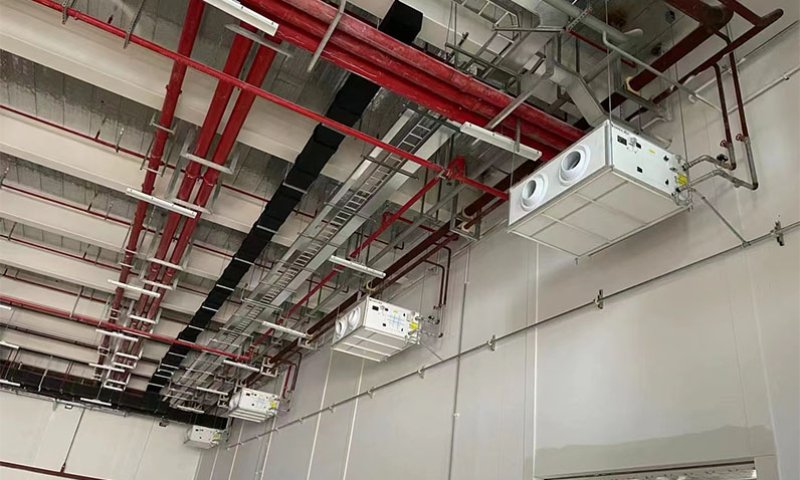

Fan coil unit

Features: FCUs ensure precise temperature control with adaptive PID algorithms and modular designs, supporting seamless integration with heat pumps or solar systems while operating silently through noise-damped enclosures.
Specs: Designed for compatibility with low-temperature radiant systems, FCUs optimize energy efficiency through variable-speed compressors and corrosion-resistant components, ensuring long-term durability.
Benefits: By enabling zoned climate stability and reducing energy consumption via heat recovery cycles, FCUs minimize maintenance needs and enhance indoor air quality for applications requiring quiet, reliable performance.

Inquire now

Technical Parameter

Model	Project OYFP		34	51	68	85	102	136	170	204	238
Rated air volume	high	m³/h	340	510	680	850	1020	1360	1700	2040	2380
	middle	m³/h	250	380	510	630	760	1020	1270	1530	1780
	Low	m³/h	170	250	340	420	510	680	850	1020	1190
Rated cooling capacity	high	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	middle	W	1590	2300	3160	3900	4600	6330	7750	9200	10800
	Low	W	1260	1800	2520	3100	3700	5040	6200	7300	8700
Heat	high	W	2700	4050	5400	6750	8100	10800	13500	16200	18900
Input Power	Low static pressure	W	37	52	62	76	96	134	152	189	228
Input Power	30Pa	W	44	59	72	87	108	156	174	212	253
Unit noise	Low static pressure	dB(A)	37	39	41	43	45	46	48	50	52
Unit noise	30Pa	dB(A)	40	42	44	46	47	48	50	52	54
Coil	Type	φ9.52 copper tube with aluminum fins/three rows of eight holes/standard fin spacing
	Water volume	kg/h	310	465	620	775	930	1240	1550	1850	2160
	Water resistance	kPa	30	33	33	33	44	44	44	44	55
Fan	Type	φ160 double inlet centrifugal fan
Fan	quantity	set	1	1	2	2	2	3	4	4	4
Motor	Type	Single-phase capacitor-run three-speed motor
Motor	quantity	set	1	1	1	1	1	2	2	2	2
interface	Inlet and outlet pipes	3/4" spinal canal internal thread
	Condensate pipe	3/4" spinal canal external thread
	Electrical interface	Terminal block (five-core wire high/middle/low/zero/ground)
Weight Kg	Standard		12	13	17	18	19	26	29	33	36
	Bring back the bellows		14	15	20	twenty one	twenty three	31	34	38	42
	LA		20	twenty one	25	27	29	38	46	50	52
	LM		twenty one	twenty two	twenty three	26	27	31	34	40	43
	WM		twenty one	twenty two	twenty three	26	27	31	34	40	43
	TK		twenty one	twenty two	twenty two	26	27	28	33	33	34
