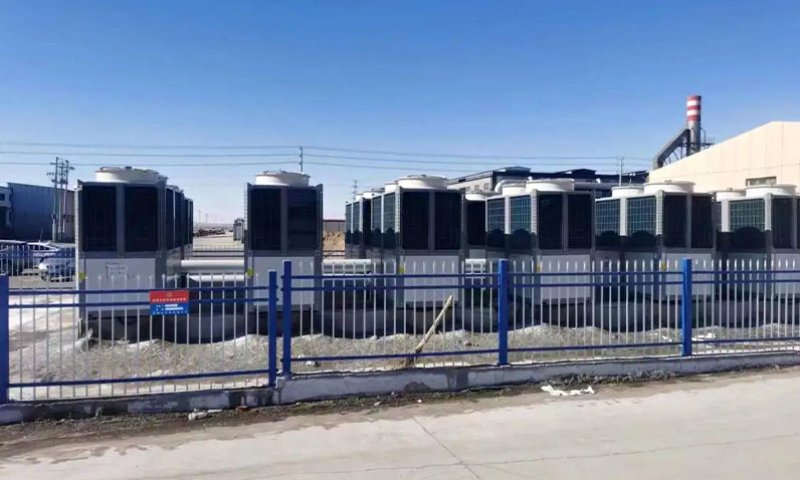

Air Source Heat Pump Hot Water Unit

Air Source Heat Pump Hot Water Unit (105 kW):
Features: Utilizes scroll compressors (e.g., Copeland) with eco-friendly refrigerants (R290/R32) and modular design for flexible integration with solar/supplemental heating.
Specs: Delivers 105 kW heating capacity, 30–60°C adjustable water temperature, and operates in -25°C to 45°C environments with ≤70 dB noise.
Benefits: Reduces energy consumption via heat recovery cycles, supports residential/industrial applications, and ensures zero emissions with automated safety controls

Inquire now

Technical Parameter

Model OY--			RS10AWF/X	RS17AWF/X	RS35AWF/TX	RS43AWF/TX	RS56AWF/TX	RS72AWF/TX	RS80AWF/TX	RS105AWF/TX
HP			3	5	10	12	15	20	25	30
RatedHeatting	Capacity	×1000kcal/h	8.4	15.0	29.8	37.4	48.2	61.7	70.9	90.5
	Capacity	kW	9.8	17.4	34.6	43.5	56.0	71.7	82.4	105.25
	Inputpower	kW	2.51	4.45	8.83	11.13	14.29	18.34	21.10	26.92
	Ratedcurrent	A	4.43	7.86	15.59	19.66	25.24	32.40	37.28	47.56
Max.Input power		kW	3.80	6.10	10.50	13.10	17.40	20.10	23.50	29.60
Protection Device			Phase Reversion Protection Phase Lack Protection Overload Current Protection Low&HighPressureProtectionLowTemp.Protection WaterFlowProtection
Number Of RefrigerationCircuit			1	1	2	2	2	2	2	3
Refrigerant			R410a
Heat source side			Ripple Aluminum Finsaround Copper Pipe
Use side heat exchanger			Casing/high efficiency tank					Shell-and-Tube Type
Water Side max Pressure			1.0
inDia.of pipe to Use side(inch)			1"(内牙)	1"(内牙)	1-1/2"(内牙)	1-1/2"(内牙)	2"(内牙)	2-1/2"(内牙)	2-1/2"(内牙)	2-1/2"(内牙)
L/hWater production			210	375	744	935	1200	1550	1770	2260
m³/hChilled Water Flow			1.7	3.0	6.0	7.5	9.7	12.4	14.2	18.1
KpaUse side Water pressuredrop			13	14	17	23	28	30	28	30
dB(A)Running noise			61	61	61	63	63	65	65	65
g a			120	150	330	360	405	485	625	645
(LWH)Machinesize	L ( m m )		710	750	1450	1450	1500	1850	1950	2850
	W ( m m )		710	750	750	750	810	1000	1060	1150
	H ( m m )		850	1050	1050	1350	1550	1950	1925	2140
